ECG Electrode Machine

With a Healthy Heart the Beat Goes On

About ECG

Electrocardiography is the process of producing an electrocardiogram (ECG) – a graph of voltage versus time – of the electrical activity of the heart using electrodes placed on the skin to detect heart conditions.

ECG electrodes come in different shapes and sizes to meet all patients’ monitoring needs.

We Offer Machines for All Types of ECG Electrode

Flatbed -Type
ECG Electrode Machine

Conventional machine with inline liquid gel dispensing and UV curing

ECG Electrode Machine

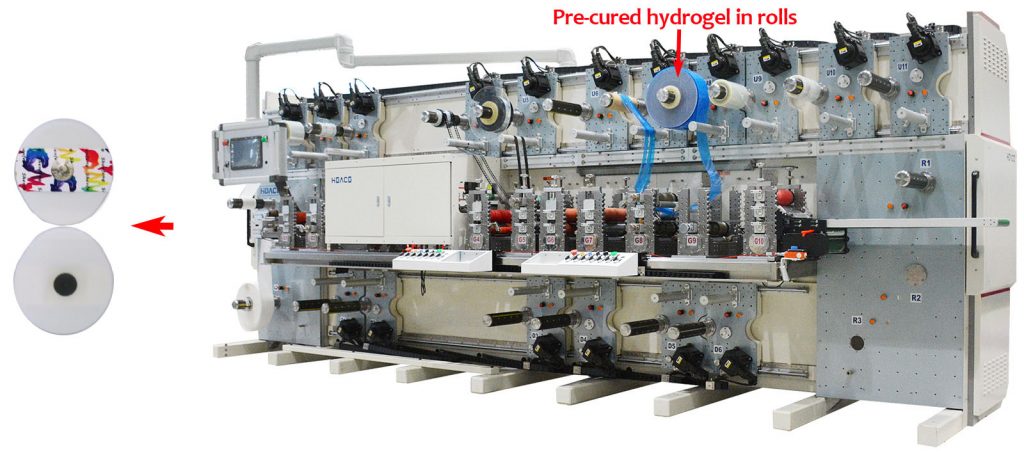

Rotary machine for ECG electrodes produce using pre-cured hydrogels

Resting Tab
ECG Electrode Machine

Rotary machine for volume production of resting tab electrodes

FlatBED-TYPE ECG Electrode Machine

Technical Specifications
Speed 50-70 pcs/min, depending on electrode size and gel formulation
Centre Hole Diameter ≤ 16mm
Outer Shape Diameter ≤ 50mm
Incoming Web Width ≤ 75mm
Label Lamination Precision ≤ ±1mm
Eyelet Snapping Precision ≤ ±1mm
FG Cut Alignment Precision ≤ ±1mm
Dimension L4000 x D1250 X H2300 mm
Weight 1.5 Ton
Rated Voltage & Power 3Phase 380Volts, 5kW

Rotary-TYPE ECG Electrode Machine

Technical Specifications
Speed 8m/min
Multiple-Ups 1-Up or 2-Up
Precision ±1mm
Dimension L7000 x D2135 X H2470 mm
Weight 7 Ton
Rated Power 3Phase 380Volts, 48kW, Max Current 96A
Compressed Air 0.45-0.60 MPa
Unwinding Roll Diameter Max 450mm
Incoming Web Width Max 250mm

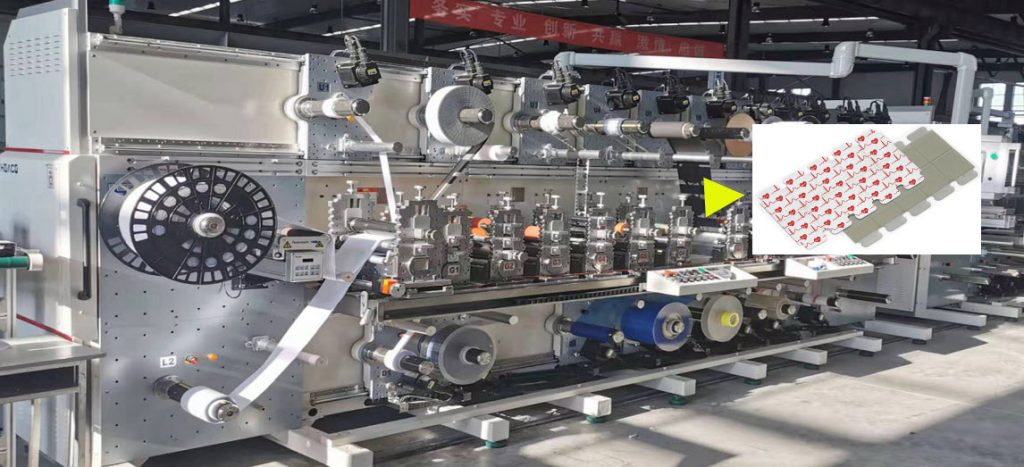

RESTING Tab ECG Electrode Machine
