Roll Inspection Machine
High-Resolution CCD Vision Camera
Ease-to-Configure Inspection Software

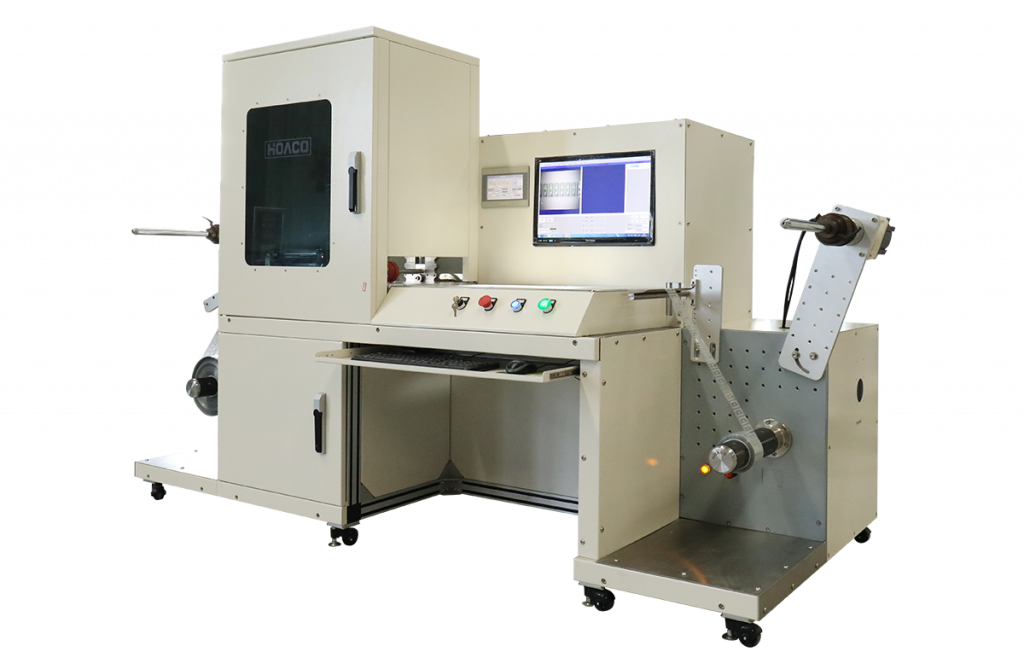

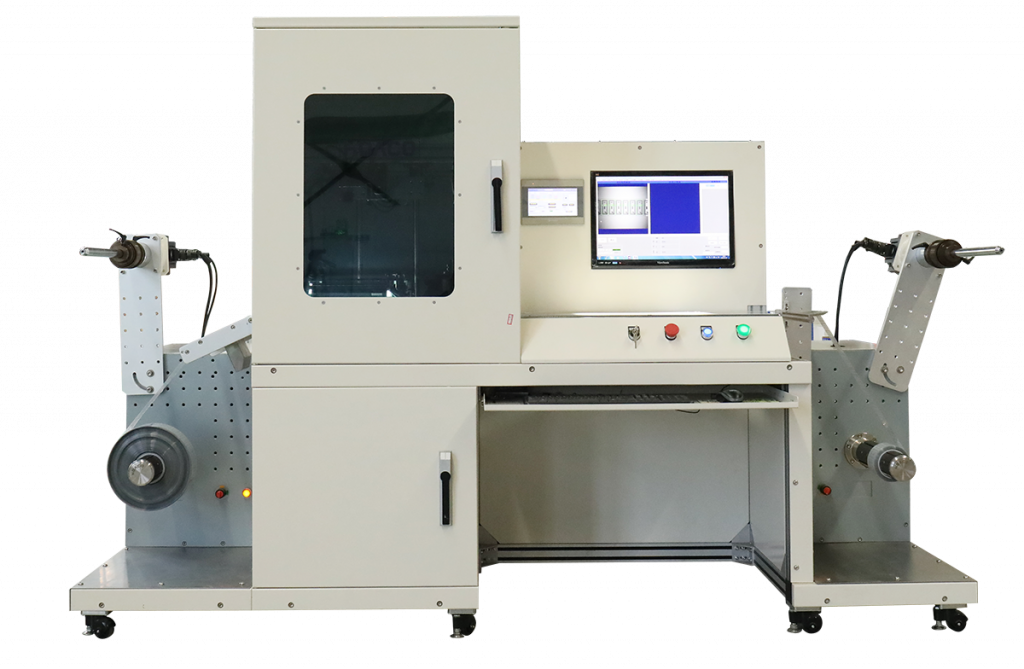

Vision inspection machine is a standalone CCD-camera-based visual testing system used for offline product dimension measurement, appearance check and inspection for defects for products in rolls. The machine can run up to 20m/meters and achieve precision up to 0.01mm. Its camera's field of view can simultaneously detect and inspect up to 150 product units.
Inspection type includes product count, impurities, stains, bubbles, unevenness, missing units, blue films, etc. The machine can also be ordered to custom-made dimension, capability and appearance.
- Contactless vision-based inspection system
- Wide color spectrum including infrared

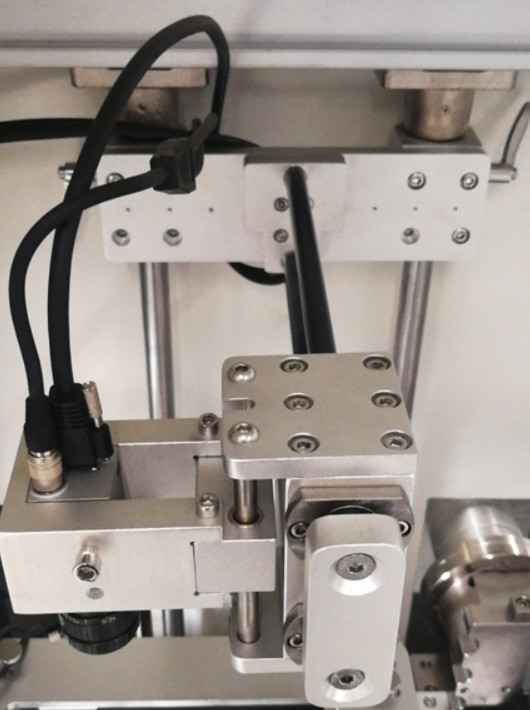

- 3-Dimensional fully adjustable camera bracket
- Software interfance/functions can be customized per customer requirements
- Machine warning/stop when dimension Out-Of-Specification
- Versatile ring-type or bar-type lighting arrangment from top, bottom, side
- Optional defects management system can be integrated to automatically print black marks, label stcikers or reject defective parts.
DEMO
Technical Specifications | |
|---|---|
Dimension | L2460 * D1120 * H1680 mm
|
Weight
| 700Kg |
Power | 3-Phase 380-415V, 6kWatt |
Speed | Up to 20 meters/min |
Field of View | Standard 80x60mm. Larger area possible at reduced precision by Lens zooming |
Capability | Inspectable dimension: >0.1mm Precision: ±0.01mm Grayscale Delta: >20 |
Inspection Type | Measurement, Distortion, Stains, Blockage, Bubbles, Discoloration, etc |
Defect Management | Machine Warning, Manual Removal NG Printing/Labeling/Rejecting (requires add-on printers/labelers/rejection devices) |
Air Shafts | 2 Unwinders, 2 Rewinders |
CCD Software | HOACO |
CCD Controller | Advantech Industrial PC |
Camera |  5-12M Pixels Resolution Basler Brand |
Lens |  Telecentric, Adjustable Focus and Zoom Moritex Brand |
