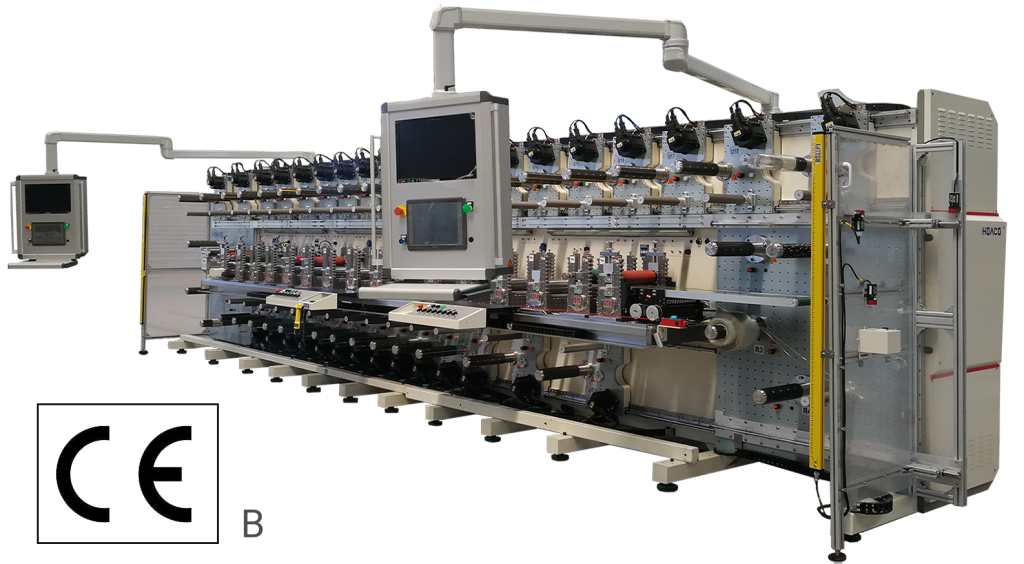

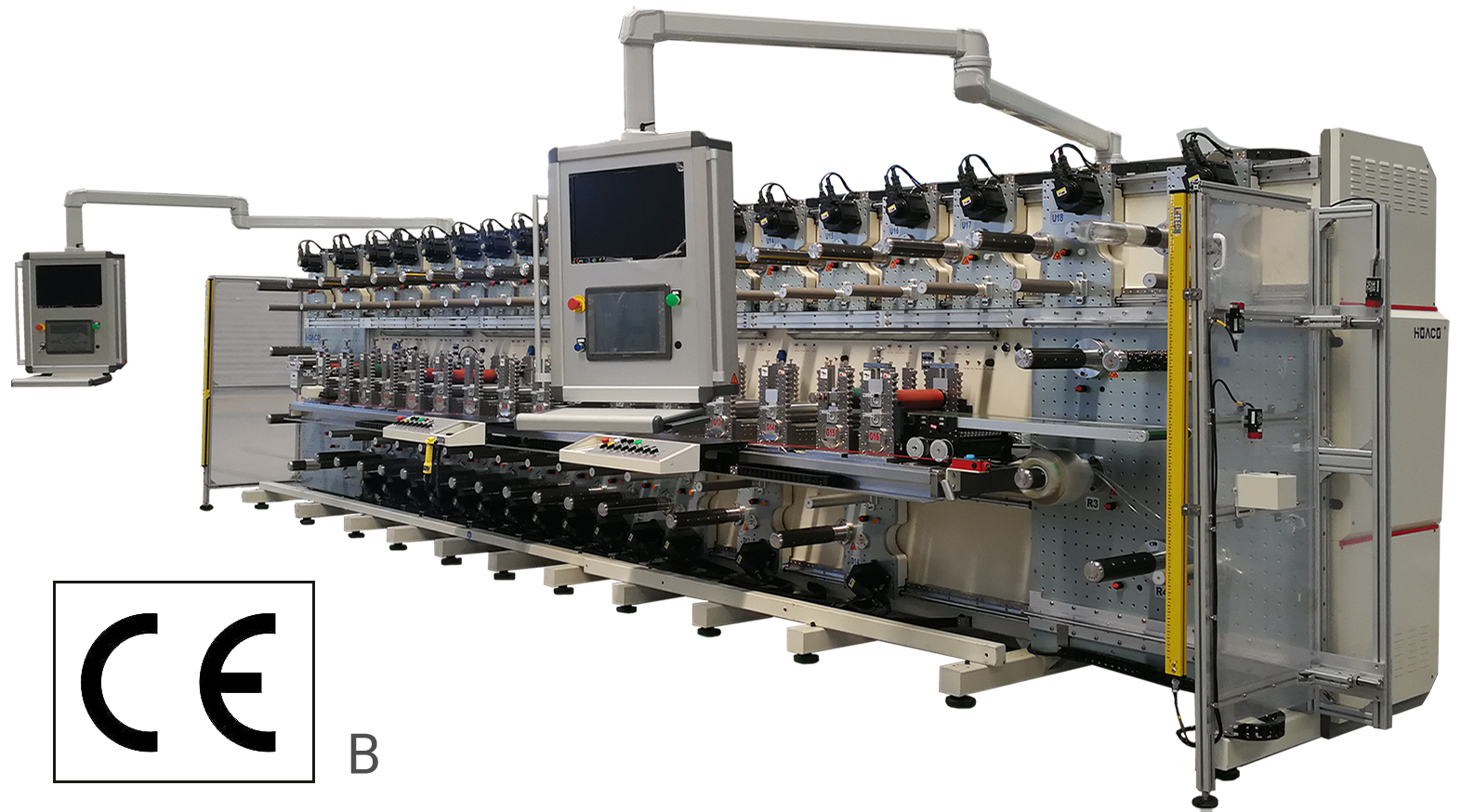

CE-Certified Safety+ RDC Machine
Custom-Built for European Market
Designed for safety and CE compliance
The CE mark is a mandatory European marking for machinery and equipment to indicate conformity with the essential health and safety requirements set out in European Directives. To meet CE regulatory safety requirement, HOACO has developed a Safety+ model RDC machine specifically designed to be 100% CE compliant, including the full set of CE certifications and technical files.

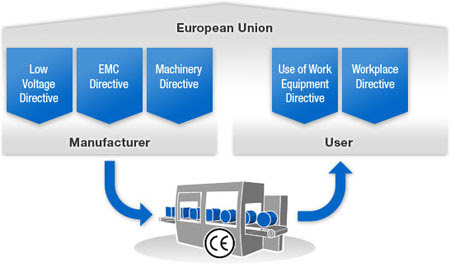

CE Directives for Machine Safety

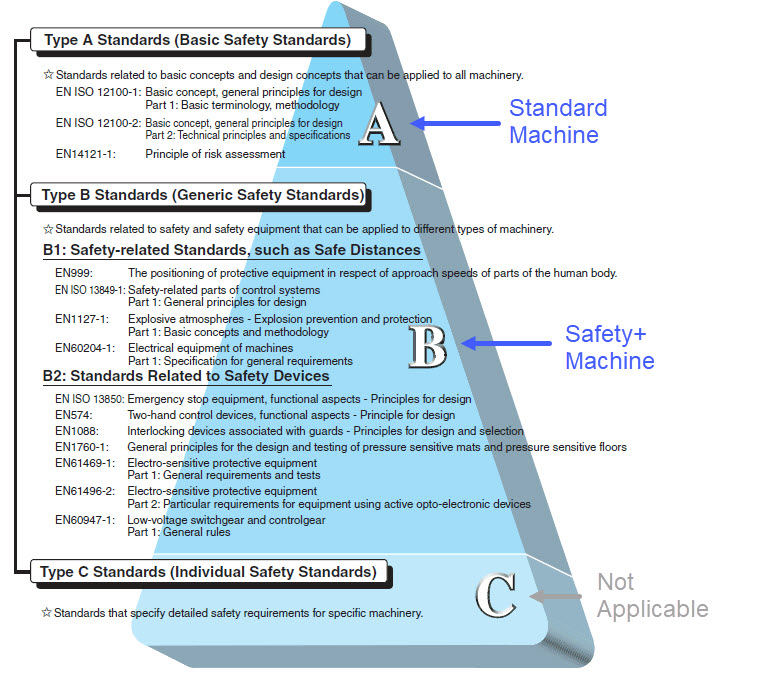

CE Structure of Safety Standards

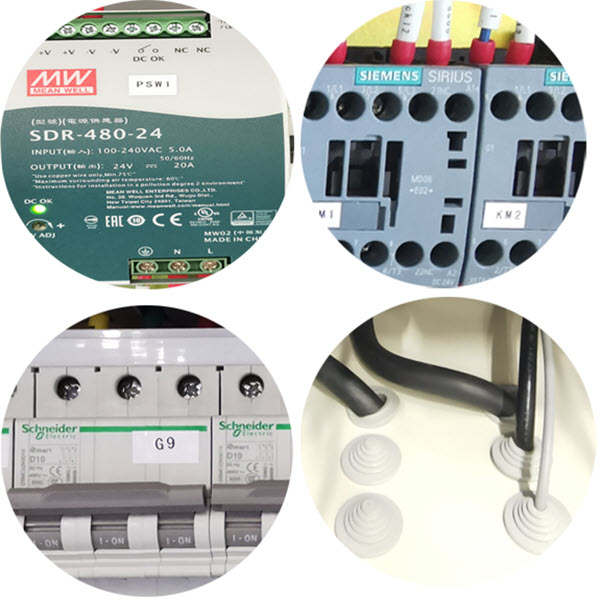

- Built with 100% CE-certified components
- More steps to operate but safety first
- Meets generic CE safety Standards
- Designed for functionality and price competitiveness
- More focus on ease-of-use and productivity
- Meets basic CE safety standards
Features | Safety+ Model | Standard Model |
|---|---|---|
CE Standards | Type B (Generic) | Type A (Basic) |
PLC Controllers | Standard PLC + Safety PLC | |
Servomotor | Safety Servomotors | Generic Servomotors |
Safety Control | Independent safety control for each RDC station | Safety control follows 1st RDC station, which must be always enabled for machine run. |
Safety Curtain | Yes | Yes |
CE Certificate | Yes (by TUV) | Yes (by UDEM) |
Lead Time | 120 days | 60 days |
Precision & Functions | Same | |
HOACO Safety+ Machine Highlights
CE Technical Files
- Risk Assessment (Available on request)
- CE Test Report (Available on request)
- EMC Test Report (Available on request)
- Machine Safety Operation Design (Available on request)
- Machine Operation Manual (Available on request)
- SRP-CS Performance Level Assessment Report (Available on request)
- ESPD Minimum Distance Calculation Report (Available on request)
- SISTEMA Safety Evaluation Report (Available on request)
- HOACO Safety+ vs Standard RDC Machine (Available on request)
