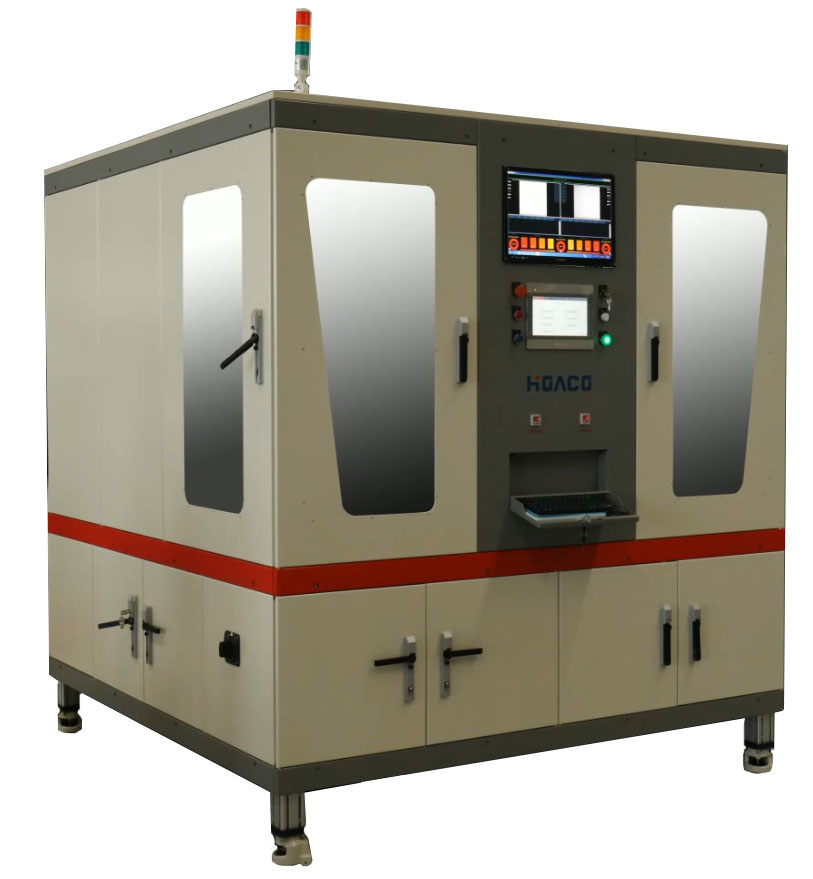

Sheet Inspection Machine
Standalone Inspection Machine
High-Resolution CCD Vision Camera
Ease-to-Configure Inspection Software
- High-resolution vision-based inspection system
- Dual incoming sheets holder for uninterrupted machine operation
- Dual camera to examine products from top and bottom
- Software interface/functions can be customized per customer requirements
- Automatic FG binning according to inspection criteria
Sheet inspection machine is a standalone CCD-camera-based visual testing system used for offline product dimension measurement, appearance check and inspection for defects for products in rolls. Inspection type includes product count, impurities, stains, bubbles, unevenness, missing units, blue films, etc. The machine can also be ordered to custom-made dimension, capability and appearance.
Pick Up

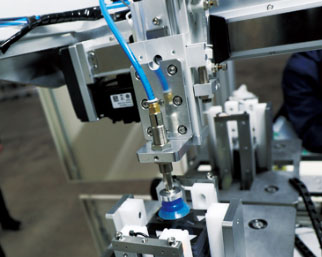

Incoming sheets in stacks placed into holders.
Turntable

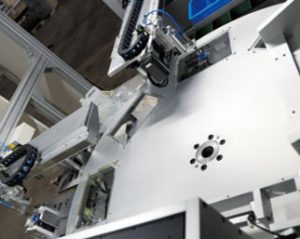

Rotating turntable moves sheet into vision camera's field of view
Image Capture

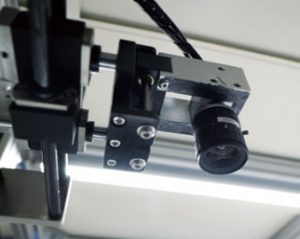

Camera captures a clear snapshot for image analysis.
Pass/Fail Binning
Pass/Fail products picked and placed into designated bins.
1
2
3
4
Technical Specifications | |
|---|---|
Field of View | Standard 80x60mm. Larger area possible at reduced precision by Lens zooming |
Capability | Inspectable dimension: >0.1mm Precision: ±0.01mm Grayscale Delta: >20 |
CCD Software | HOACO |
CCD Controller | Advantech Industrial PC |
Camera |  5-12M Pixels Resolution Basler Brand |

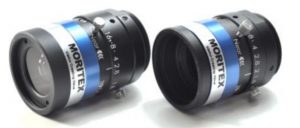

Lens |  Telecentric, Adjustable Focus and Zoom Moritex Brand |
