KF94 Mask Machine

Innovative design and better comfortability
Protecting you and your loved ones

KF94 Masks

The machine

Our best-selling RDC(Rotary Die Cutting) machine can be easily upgraded to become a high-speed protective face mask machine with the addition of a customized face-mask folding and sealing module.

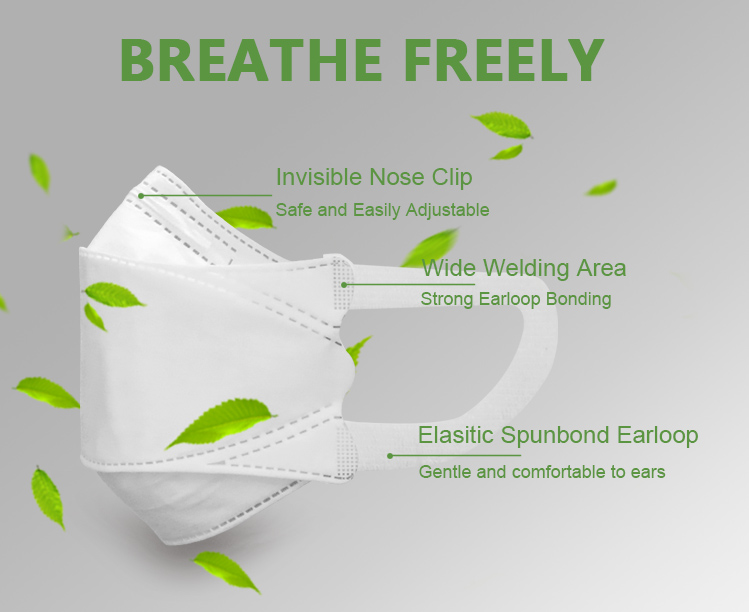

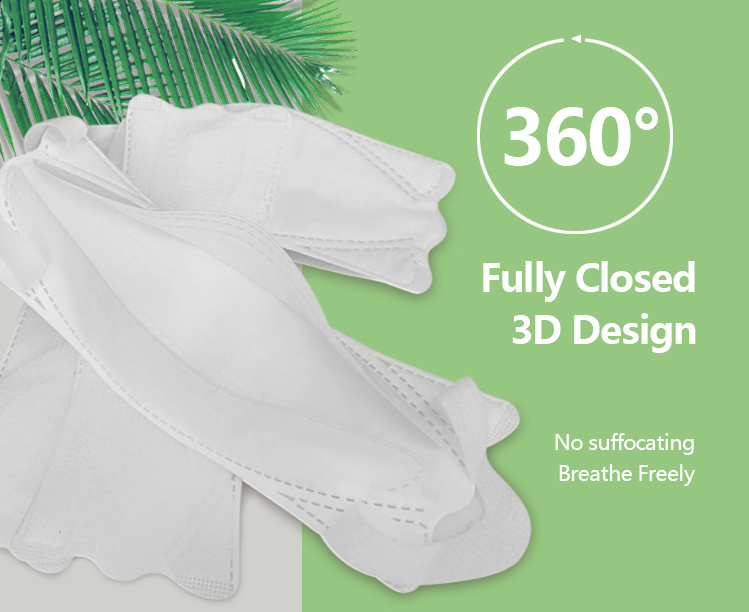

Mask KF94-type 3D face mask with elastic spunbond earloop

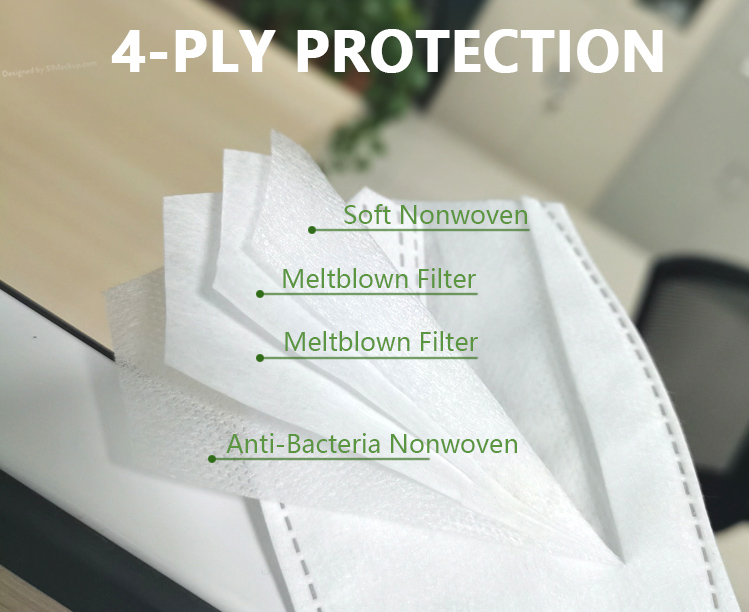

# of Plies 3 or 4 Plies + Elastic Spunbond Earloop Layer
Mask Sizes Adult Type: 205 x 72mm    |    Child Type: 170 x 60mm
Raw Materials Layer Material Width Core ID OD
Outer Layer Leak-Proof Nonwoven 210mm 77mm 91mm 550mm
Middle Layer 1Meltblown Filter 210 77 91 450
Middle Layer 2 (optional)Meltblown Filter 210 77 91 450
Inner LayerSoft Nonwoven (Face Side) 210 77 91 550

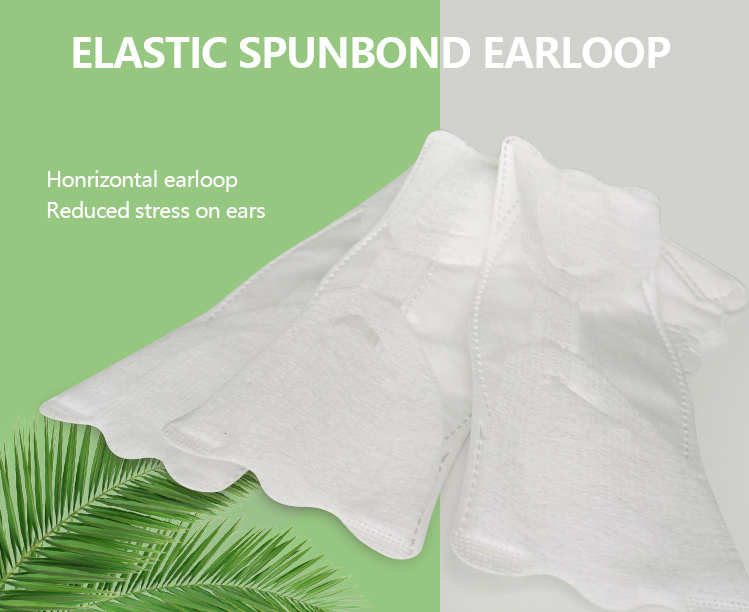

EarloopElastic Spunbond Nonwoven 90 77 91 450
Nose ClipDeformable plastic or aluminium Wire 2.5 - 3 77 91 450
--- Low-adhesion process tape (20g) 90 77 91 450
Bonding Method Ultrasonic Welding (Qty: 3)
Nose Clip Length 85 - 90mm
Production Speed 3-ply mask: 110 pcs/min
4-ply mask: 85 pcs/min
Precision Tolerence ±2mm
Roll Change Manual splicing or Customer's own automatic roll splicing machine
Rate Electricity Power: 36kW Current: 72A Voltage: 3-Phase 380V 50/60Hz
Compressed Air 0.4 - 0.6 Mpa
Machine Dimension L5900 x W1670 x H2470 mm
Packaging Dimension L6200 x W1720 x H2480 mm (Fumigated Wooden Box)
Machine Weight 6 Tons
Operating Console Sliding Design (Qty: 1)
Die Set Station Rotary Die Cutting Station (Qty: 11)
Unwinding Method Air Shaft (Qty: 15)
Servomotor & Driver Delta Electronics    |    Inovance
PLC Omron

Mask Manufacturing Process
