KN95 Elite Mask Machine

Innovative design and better comfortability
Protecting you and your loved ones

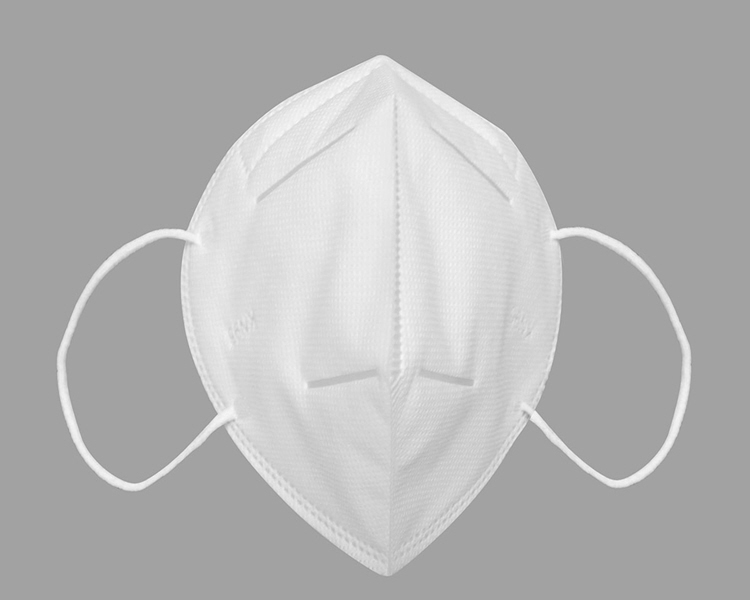

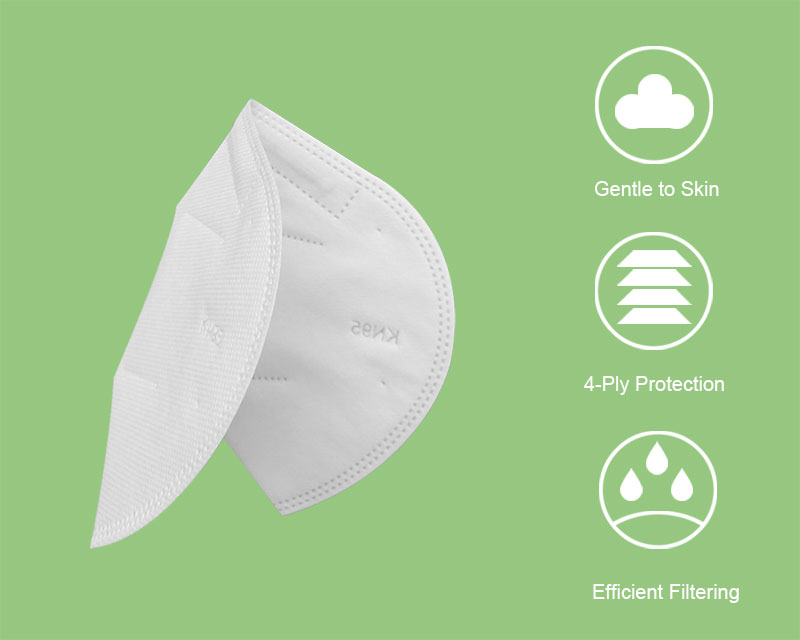

KN95 Masks

The ELITE machine

  • Semi-automatic machine for making KN95 mask body only
  • Superior speed at > 200 pcs/min

DEMO VIDEO

TECHNICAL SPECIFICATIONS
Mask KN95 mask (Unfolded mask body only without earloop)
# of Plies 4 - 5 Plies
Mask Sizes 235 x 125mm
Raw Materials Layer Material Width Core ID OD
Outer Layer Leak-Proof Nonwoven 150mm 77mm 91mm 550mm
Middle Layer 1Meltblown Fabric 150 77 91 450
Middle Layer 2 Meltblown Fabric 150 77 91 450
Middle Layer 3 (optional)Meltblown Fabric 150 77 91 450
Inner LayerSoft Nonwoven (Face Side) 150 77 91 550
Nose ClipDeformable plastic or aluminium Wire 4 - 5 77 91 450
--- Low-adhesion process tape (20g) 150 77 91 450
Bonding Method Heat Sealing
Nose Clip Length 85 - 90mm
Production Speed > 100 pcs/min
Precision Tolerence ±2mm
Rate Electricity Power: 7kW Current: 20A Voltage: 3-Phase 380V 50/60Hz
Compressed Air 0.4 - 0.6 Mpa
Machine Dimension L3850 x W1250 x H1900 mm
Packaging Dimension L4150 x W1300 x H1930 mm (Fumigated Wooden Box)
Machine Weight 0.9 Ton
Die Set Station Rotary Die Cutting Station (Qty: 3)
Unwinding Method Air Shaft (Qty: 7)
Servomotor & Driver Delta Electronics    |    Inovance
PLC Omron
